HOME /Eclisse Syntesis Double Flush Pocket Door System (100mm Wall Thickness)
Eclisse Syntesis Flush Double Pocket Door Syntesis Double Pocket Door Kit Dimensions Syntesis Frame Profile Eclisse Syntesis Double Pocket Door Kit
TEclisse Syntesis Flush Double Pocket DoorTSyntesis Double Pocket Door Kit DimensionsTSyntesis Frame ProfileTEclisse Syntesis Double Pocket Door Kit

Eclisse Syntesis Double Flush Pocket Door System (100mm Wall Thickness)
(0 Reviews)  Review this item
  • A Counterframe system without the need for architraves
  • Push the door back into the pocket and your door virtually becomes invisible!
  • When you don’t want to see architraves and jambs, just clean lines of wall/door/wall
  • An ingenious system that allows you to eliminate the use of architraves.
  • 10 Kit sizes to choose from, to suit 10 standard UK door sizes (Suitable for use with 35mm - 44mm thick doors)
  • Pick the kit you require from the below options

PACKAGES INCLUDES:
  • Eclisse Syntesis pocket door frame with track and runners
  • FREE Carriage - Mainland UK Postcode

Need help in choosing the RIGHT SIZE? Click here

Why choose an Eclisse Pocket door kit from Pocketdoorshop.co.uk?

Download - Data Sheet | Frame Installation | Door Installation

Syntesis BannerSyntesis 100mm lead timeALL PRICES INC. VAT

FRAME SIZE DOOR SIZE
MAX PASSAGE SIZE (PW X PH) OVERALL DIMS OPENING W X H FINISHED WALL DW (WIDTH) DH (HEIGHT) PRICE 1+ (inc vat) PRICE 3+ (inc vat) BUY
1200 x 2048 2700 x 2108 100 626 2040 £948.00 £900.60
1400 x 2048 3100 x 2108 100 726 2040 £948.00 £900.60
1600 x 2048 3500 x 2108 100 826 2040 £948.00 £900.60
1800 x 2048 3900 x 2108 100 926 2040 £968.40 £919.98
2000 x 2048 4300 x 2108 100 1026 2040 £1,108.80 £1,053.36
1168 x 1989 2668 x 2049 100 610 1981 £948.00 £900.60
1320 x 1989 3020 x 2049 100 686 1981 £948.00 £900.60
1472 x 1989 3372 x 2049 100 762 1981 £948.00 £900.60
1624 x 1989 3524 x 2049 100 838 1981 £1,026.00 £974.70
1776 x 1989 3876 x 2049 100 914 1981 £1,026.00 £974.70

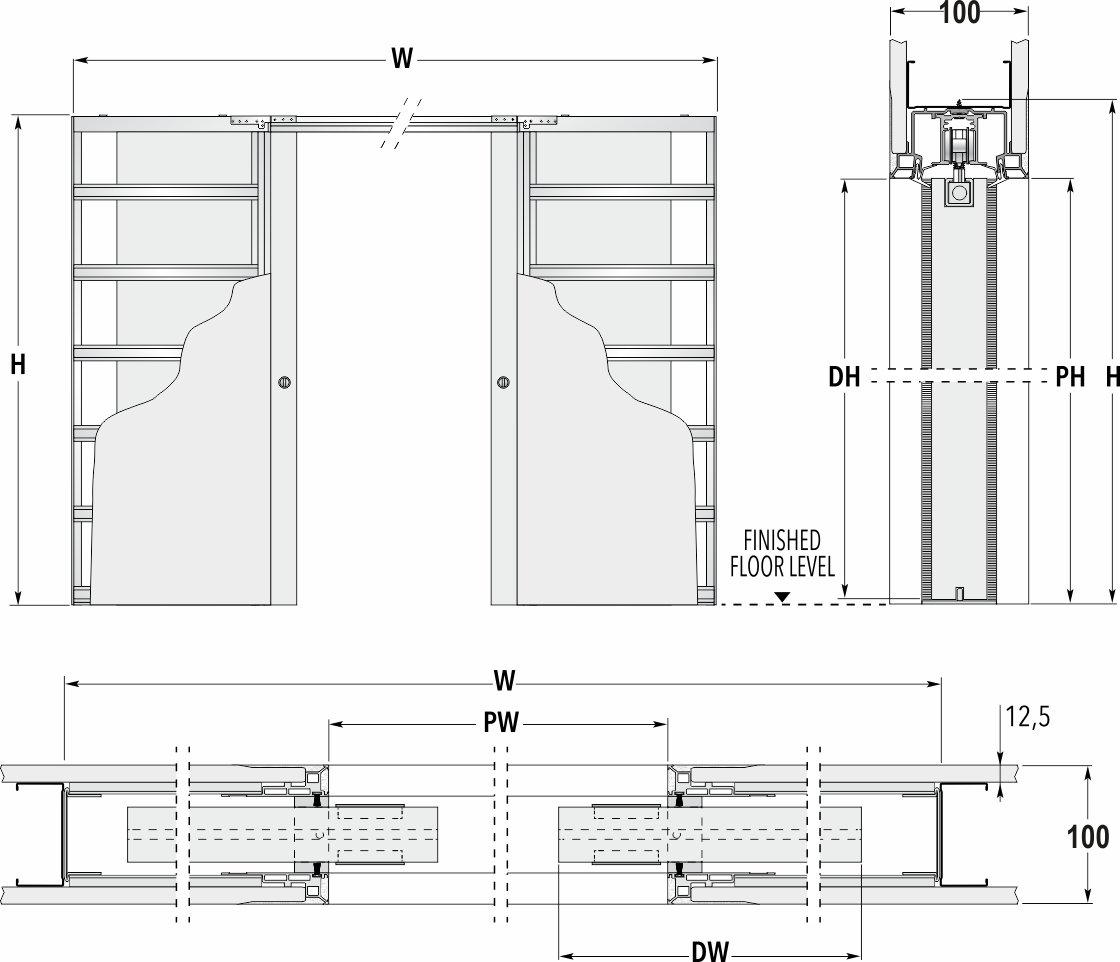

Eclisse Syntesis Double Drawing 100mm



Additional Product Features:

  • Innovative edge profile that allows for a crisp plaster finish right to the edge and into the return for a minimalist architrave free appearance.
  • The Syntesis® Flush range has been designed to be the strongest of its type on the market, flex is reduced to a minimum using stronger aluminium profiles and reinforced joints to reduce the risk of plaster cracking to a very minimum.
  • Runners are tested to 100,000 cycles
  • Fully adjustable front and rear doorstop. Rear doorstop can be adjusted without removing the door.
  • 15 year guarantee on the complete Eclisse steel pocket system, track and runners
  • When fitting flush pull handles we recommend the stop be regulated so the door protrudes from the pocket to avoid risk to fingers. Should the door be adjusted to enter the pocket completely we do not accept any liability.



DescriptionSizeFormatGet File
Double Syntesis Door Installation1483544.pdfDOWNLOAD
Double Syntesis Frame Installation - 100mm2718718.pdfDOWNLOAD
Eclisse Syntesis Double Flush Pocket Door System - Data Sheet1908863.pdfDOWNLOAD
