Double Top – Straight Sliding Wardrobe Track System – Suitable for doors up 900mm wide

(0 Reviews)  Review this item
  • Ideal for double bypassing wardrobes of cupboard doors
  • Triple option also available see kit code PDD24
  • Door size range up to 900 wide x 2400mm high
  • Suitable door thickness 16-40mm
  • Max door weight 45kg
  • Suitable for wooden or MDF sliding doors (doors by others)
  • Ideal for use in domestic applications
  • Internal use only
  • Hangers fix to the back of the door
  • Nylon rollers for quiet and smooth operation
  • For single door applications please refer the Single Top
  • Fascia option available (contact for details)
  • 10-year warranty
  • Suitable for soffit (ceiling) or face (wall) fix
  • Fitting instructions – download


£52.47EX VAT

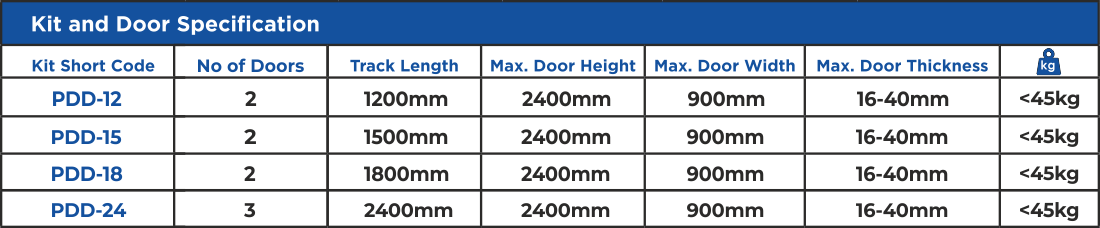

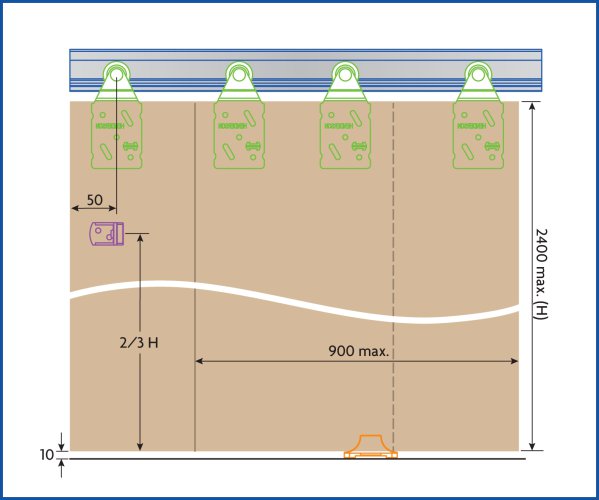

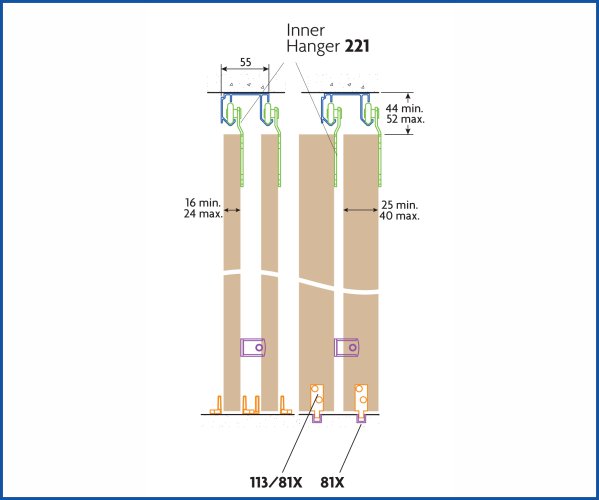

Double Top Dimensions

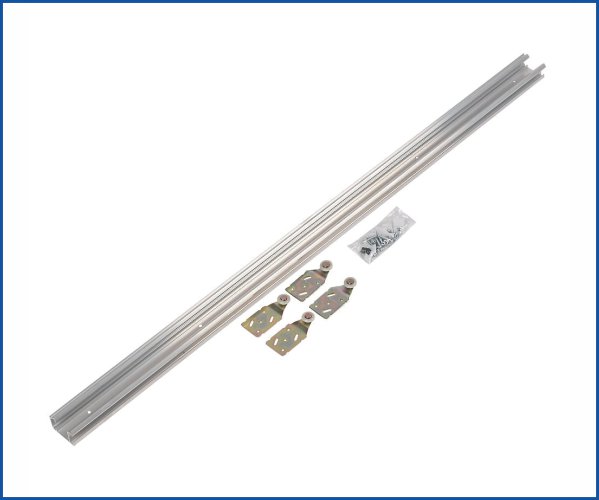

Kit Includes:

  • 1 x Anti-rise aluminium track for Soffit (ceiling) or face (wall) installation
  • 4 x Nylon rollers (6 x PDD24)
  • 2 x Outer offset hangers and screws
  • 2 x Inner offset hangers and screws
  • 2 x Reversible hangers and screws (PDD24 only)
  • 1 x Rubber buffered stop (2 x PDD24)
  • 1 x Nylon door guide (2 x PDD24)
  • Excludes doors and flush pulls
DescriptionSizeFormatGet File
Double Top Installation Instructions1371177.pdfDOWNLOAD
